If you build with steel framing, you already know steel is fast, straight and strong. What is easy to miss is what steel does to a wall's thermal performance. Steel conducts heat roughly a thousand times faster than timber, so every stud, plate, nogging and batten that touches the cladding becomes a shortcut for heat to move straight through the wall. That shortcut is called a thermal bridge, and on a steel-framed home there are a lot of them.
This is the issue behind one of the most common questions Australian builders and designers are searching right now: what exactly is a thermal break on a steel frame, and do I actually need one? The short answer is yes – in most of Australia it is a Code requirement, not an optional upgrade. And there is a second, costlier question hiding inside it: do I need to break the whole frame, or just the studs? That one trips up a lot of good builders.
What a thermal break actually does

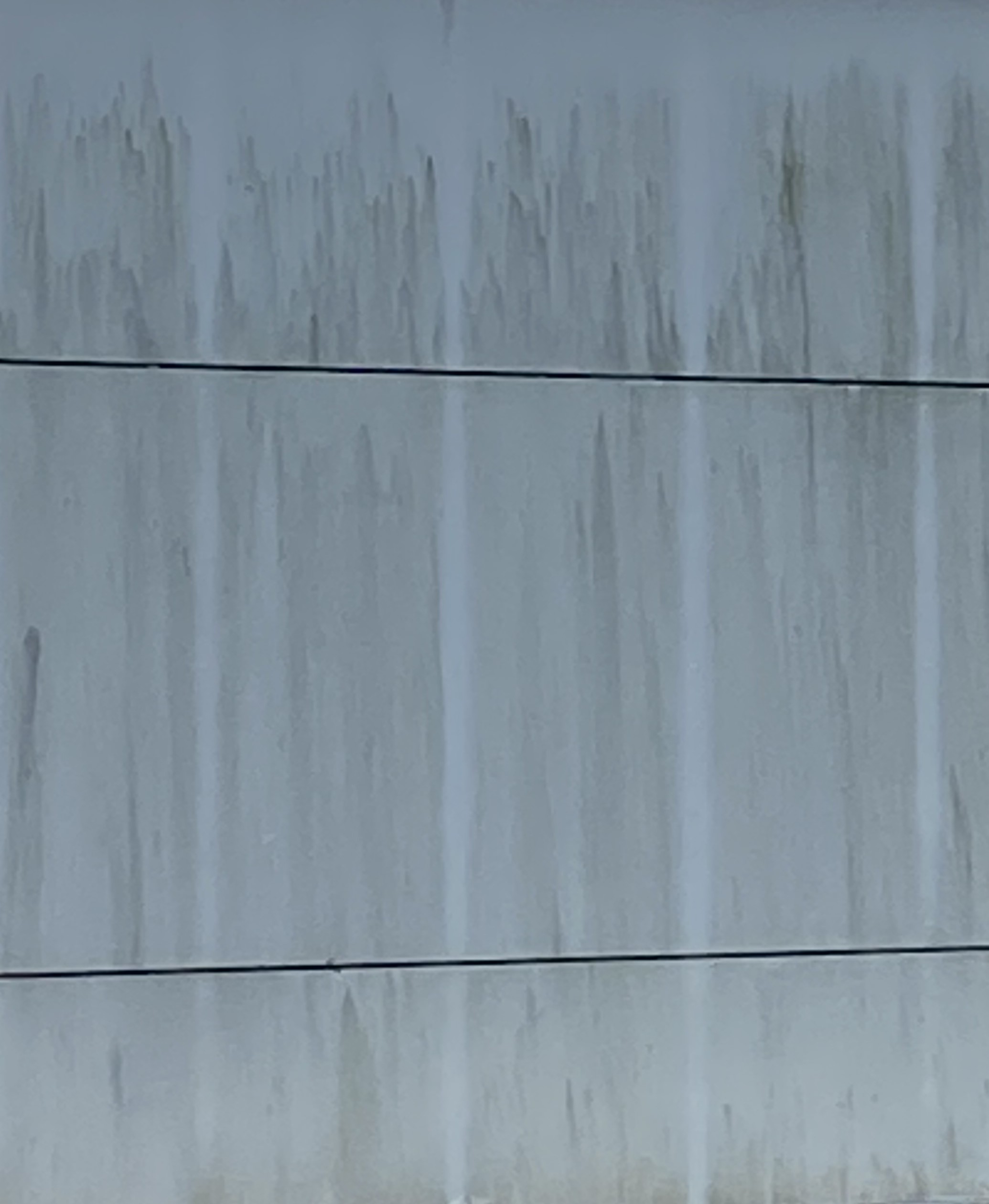

A thermal break is a layer of low-conductivity material installed between the external cladding and the steel frame, at every point where the two would otherwise touch. Instead of heat running freely from the cladding into the steel and through to the lining, the break interrupts that path. The wall keeps more of its insulation value, the frame runs closer to room temperature, and the cold (or hot) stripes that show up on a thermal camera down every framing member are reduced.
Think of it the way you would a thermos. The vacuum layer is what stops the heat escaping – not the steel shell. A thermal break is that interrupting layer for your wall.
Why it is a compliance issue, not just a comfort one
Under the National Construction Code, a thermal break with a minimum R-value of R0.2 is required between external cladding and a steel frame, installed at all points where the cladding would have come into contact with the steel. It is part of the energy efficiency provisions, and for most projects it is a Deemed-to-Satisfy requirement – if it is not there, the wall does not comply.
The most expensive mistake: insulating the studs but not the remaining structural members
Here is where it goes wrong on real jobs. A builder runs thermal-break strips down the vertical studs, leaves the horizontal members – top and bottom plates, noggins, k-bracing – with just an air gap behind the cladding, and reasons: "The cladding doesn't touch the steel there, and an air gap insulates, so the horizontals are fine."
That logic fails on three counts, and any one of them is enough.
The Code says "all points." Not most points. A plate, a nogging or a k-brace is a cladding-to-steel contact line. Leave it bare and you have not met the words of the provision. Heat flow is governed by the weakest link, not the average.
The energy assessment only credits the thermal break where it physically covers the steel. Steel-framed wall R-values are calculated under AS/NZS 4859.2, which models every framing member as a thermal bridge – you cannot ignore one because it runs horizontally. The calculation credits the R0.2 break only where it actually sheaths the steel-to-cladding interface. Where there is just an air gap, the method treats the steel as a near-bare bridge with a contact resistance of around R0.03 – about one-seventh of the R0.2 you needed. The break on the studs does not carry the horizontals. Because bridges run in parallel, one un-broken line short-circuits the insulation around it and drags the assessed wall R-value down.
An air gap is only "insulation" if it is sealed – and behind cladding it usually isn't. A still, sealed air space might approach R0.15–0.17. But the moment that cavity is drained and ventilated – which NCC 2025 now makes mandatory behind cladding in Climate Zones 6 to 8 – its still-air value collapses to roughly R0.04, because the moving air carries the heat away. You cannot claim a ventilated cavity for condensation control and also claim its air as a thermal break; the ventilation that keeps the wall dry is exactly what destroys the air gap's insulating value. On top of that, heat still crosses any gap by radiation – bare steel and the back of cladding "see" each other thermally whether or not they touch – so the un-broken member keeps tracking outdoor temperature. That cold horizontal member then becomes the prime surface for condensation inside the wall.
The upshot: a thermal break on the studs alone is a partial break. Steel framing without a continuous break can shed close to half its nominal batt R-value – and you can't see the loss until the thermal camera, the certifier, or the condensation finds it.
What "good" looks like
A thermal break that does its job has three qualities: it meets or beats R0.2, it sits continuously at every cladding-to-frame contact – studs and plates, noggins and k-bracing – and it does not complicate your fixing.
This is where ATI's Cavi-Break® and Cavi-Vent® range fit. Every variant comfortably exceeds the R0.2 minimum – the indicative material R-values run from R0.28 on the X10 to R0.90 on the X35 (these are indicative material values, not whole-wall R-values, but they show the headroom above the Code minimum). Cladding fixes straight through the strip and membrane into the frame, so you interrupt the heat path without changing how the wall goes together.
There is a real payoff in that headroom. On a steel-framed wall, a higher-performing, continuous break can let you hit your target wall performance with standard R2.0 batts where a weaker or partial break would push you to more expensive R2.5 batts. The break does some of the work the batts would otherwise have to.
The simple way to get it right
- Confirm your project is steel-framed and identify which state rule applies.
- Choose a thermal break that meets or exceeds R0.2 – and ask for the supporting data, not just a claim.
- Detail it continuously at every cladding-to-steel contact: studs, top and bottom plates, noggins, and any horizontal battens. No bare members.
- Keep your fixing method simple so the break does not slow the trades down.
A thermal break is one of the cheapest lines on a steel-framed wall and one of the most consequential – but only where it actually is. Cover the whole frame and the wall performs as designed, passes inspection, and stays out of your warranty file. Break the studs and skip the rest, and you have reopened a steel short-circuit you cannot see.
If you want to check whether your wall build meets the R0.2 requirement at every member – or work out which Cavi-Break® variant suits your cladding and climate zone – the team at ATI can run the numbers with you. Start at australianthermal.com.au and build the wall with confidence.
